CNC Swiss Type Lathe
CNC Swiss Type Lathe
SS-26ABY / 32ABY
Sliding-head (Swiss-type) CNC Lathes with B-Axis

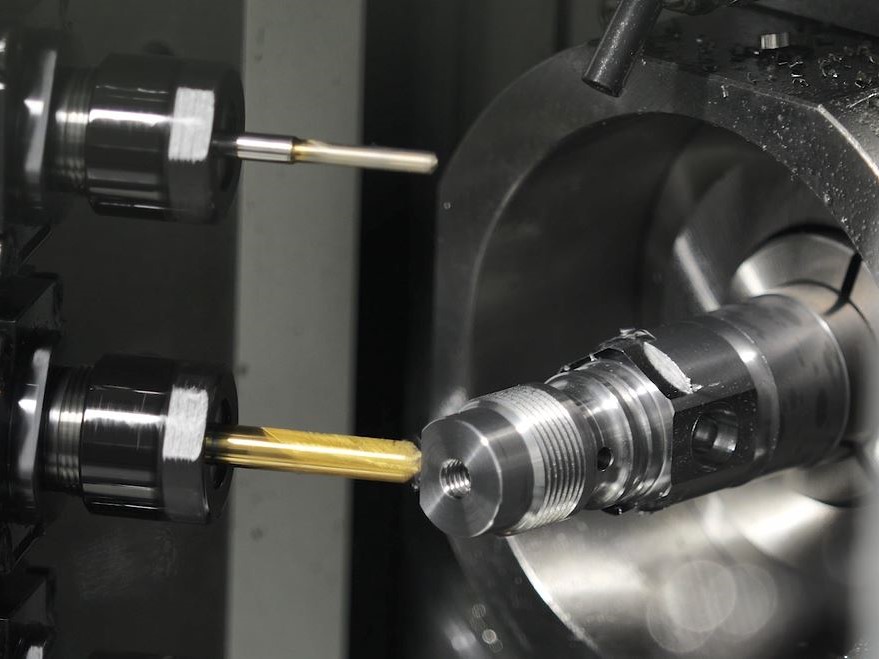

The SS-26/32ABY Swiss-type CNC Lathe with B-axis is designed for manufacturers producing complex, high-precision components in a single setup. Combining a high-performance sliding headstock design with a fully programmable B-axis, it enables efficient turning, milling, drilling, tapping, and angled machining while minimizing secondary operations.
| MODEL | UNIT | SS-26ABY | SS-32ABY | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SYSTEM | Spindle 1 | Spindle 2 | |||||||||||||||
| TYPE | A | B | C | CB | A | B | C | CB | A(L) | B(L) | C(L) | CB(L) | A(L) | B(L) | C(L) | CB(L) | |
| O.D. tool (□16) | 9 | 5 | 9 | 5 | 4 | 4 | 1 | 1 | 9 | 6 | 9 | 6 | 4 | 4 | 1 | 1 | |
| I.D. tool (Ø25) | 5 | 5 | 5 | 5 | 4 | 4 | - | - | 5 | 5 | 5 | 5 | - | - | - | - | |
| Cross tool (ER16) | 7 | 4 | 7 | 4 | 4 | 4 | - | - | 7 | 3 | 7 | 3 | 3 | 3 | - | - | |
| B axis tool (ER16) | - | 5 | - | 5 | - | - | - | - | - | 4 | - | 4 | - | - | - | - | |
| Face tool (ER16) | - | - | - | - | 4 | 4 | 4 | 4 | - | - | - | - | 5 | 5 | 4 | 4 | |
| Depth drill (Ø25) | - | - | - | - | 2 | 2 | 2 | 2 | - | - | - | - | 2 | 2 | 2 | 2 | |
| Bar capacity | mm | 26 | 26 | 26 | 26 | 26 | 26 | 26 | 26 | 32(38) | 32(38) | 32(38) | 32(38) | 32(38) | 32(38) | 32(38) | 32(38) |
| Max.drilling diameter | mm | 13 | 13 | 13 | 13 | 10 | 10 | 10 | 10 | 13 | 13 | 13 | 13 | 10 | 10 | 10 | 10 |
| Max. tapping size | M10 | M10 | M10 | M10 | M8 | M8 | M8 | M8 | M10 | M10 | M10 | M10 | M8 | M8 | M8 | M8 | |
| Max. drilling diameter of live tool | mm | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
| Max. tapping size of live tool | M8 | M8 | M8 | M8 | M8 | M8 | M8 | M8 | M8 | M8 | M8 | M8 | M8 | M8 | M8 | M8 | |
| Max. turning length (Collet open once) | mm | BUSH:260 / NON-BUSH:100 | BUSH:260 / NON-BUSH:100 | BUSH:260 / NON-BUSH:100 | BUSH:260 / NON-BUSH:100 | BUSH:260 / NON-BUSH:100 | BUSH:260 / NON-BUSH:100 | BUSH:260 / NON-BUSH:100 | BUSH:260 / NON-BUSH:100 | BUSH:260 / NON-BUSH:100 | BUSH:260 / NON-BUSH:100 | BUSH:260 / NON-BUSH:100 | BUSH:260 / NON-BUSH:100 | BUSH:260 / NON-BUSH:100 | BUSH:260 / NON-BUSH:100 | BUSH:260 / NON-BUSH:100 | BUSH:260 / NON-BUSH:100 |
| Max. speed of main spindle | rpm | 8000 | 8000 | 8000 | 8000 | 8000 | 8000 | 8000 | 8000 | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 |
| Max. speed of sub spindle | rpm | 8000 | 8000 | 8000 | 8000 | 8000 | 8000 | 8000 | 8000 | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 |
| Max. speed of live tool | rpm | 8000 | 8000 | 8000 | 8000 | 8000 | 8000 | 8000 | 8000 | 8000 | 8000 | 8000 | 8000 | 8000 | 8000 | 8000 | 8000 |
| Max. speed of B axis live tool | rpm | 5000 | 5000 | 5000 | 5000 | 5000 | 5000 | 5000 | 5000 | 5000 | 5000 | 5000 | 5000 | 5000 | 5000 | 5000 | 5000 |
| Spindle (Conti./Peak) | kw | 2.5/5.5 | 2.5/5.5 | 2.5/5.5 | 2.5/5.5 | 2.2/3.7 | 2.2/3.7 | 2.2/3.7 | 2.2/3.7 | 2.5/5.5 | 2.5/5.5 | 2.5/5.5 | 2.5/5.5 | 2.2/5.5 | 2.2/5.5 | 2.2/5.5 | 2.2/5.5 |
| X axis | kw | 1.4 | 1.4 | 1.4 | 1.4 | 1.4 | 1.4 | 1.4 | 1.4 | 1.4 | 1.4 | 1.4 | 1.4 | 1.4 | 1.4 | 1.4 | 1.4 |
| Y axis | kw | 1.6 | 1.6 | 1.6 | 1.6 | 2.5 | 2.5 | - | - | 1.6 | 1.6 | 1.6 | 1.6 | 2.5 | 2.5 | - | - |
| Z axis | kw | 2.5 | 2.5 | 2.5 | 2.5 | 1.4 | 1.4 | 1.4 | 1.4 | 2.5 | 2.5 | 2.5 | 2.5 | 1.4 | 1.4 | 1.4 | 1.4 |
| B axis | kw | 2.5 | 2.5 | ||||||||||||||
| Live tool | kw | 2.5 | 25 | ||||||||||||||
| Rapid traverse | m/min | 30 | 30 | ||||||||||||||
| Coolant tank capacity | L | 407 (100%) | 407 (100%) | ||||||||||||||
| Machine dimension (LxWxH) | mm | 3108x2046x2100 | 3108x2046x2100 | ||||||||||||||
| Weight | kg | 4870 | 4970 |
STANDARD ACCESSORIES
- MAIN SPINDLE EXTERNAL TOOL HOLDER (9 TOOLS) (#26TYPE A/#26TYPE C/#32TYPE A/#32TYPE C)
- MAIN SPINDLE EXTERNAL TOOL HOLDER (6 TOOLS) (#32TYPE B/#32TYPE CB)
- MAIN SPINDLE EXTERNAL TOOL HOLDER (5 TOOLS) (#26TYPE B/#26TYPE CB)
- INNER TOOL HOLDER (5 TOOLS)
- MAIN SPINDLE SIDE DRILLING TOOL HOLDER (7 TOOLS) (#26TYPE A/#26TYPE C/#32TYPEA/#32TYPE C)
- MAIN SPINDLE SIDE DRILLING TOOL HOLDER (4 TOOLS) (#26TYPE B/#26TYPE CB)
- MAIN SPINDLE SIDE DRILLING TOOL HOLDER (3 TOOLS) (#32TYPE B/#32TYPE CB)
- B AXIS TOOL HOLDER (5 TOOLS) (#26TYPE B/#26TYPE CB)
- B AXIS TOOL HOLDER (4 TOOLS) (#32TYPE B/#32TYPE CB)
- SUB SPINDLE TOOLING SYSTEM (16 TOOLS) (OD*4, ID*4, CROSS LIVE TOOLS*4, FACE LIVE TOOLS*4) (#26TYPE A/#26TYPE B)
- SUB SPINDLE TOOLING SYSTEM (12 TOOLS) (OD*4, CROSS LIVE TOOLS*3, FACE LIVE TOOLS*5) (#32TYPE A/#32TYPE B)
- SUB SPINDLE TOOLING SYSTEM (4 TOOLS) (OD*1, FACE LIVE TOOLS*4) (#26TYPE C/#26TYPE CB/#32TYPE C/#32TYPE CB)
- MAIN SPINDLE HYDRAULIC CYLINDER
- SUB SPINDLE HYDRAULIC CYLINDER
- MAIN SPINDLE C AXIS
- SUB SPINDLE C AXIS
- SPINDLE COLLET CHUCK
- FIXED GUIDE BUSHING HOLDER
- PARTS CATCHER & PARTS CONVEYOR
- TOOL & TOOL BOX
- LIGHTING DEVICE
- CUTTING COOLANT DEVICE
- LUBRICATION DEVICE
- CUTTING COOLANT INSPECTION (ELECTRONIC TYPE)
- CUT-OFF INSPECTION
- OPERATION MANUAL
- NC OPERATION MANUAL
- NC MAINTENANCE MANUAL
OPTIONAL ACCESSORIES
- 3 POSITION FACE LIVE TOOL HOLDER FOR MAIN AND SUB SPINDLE (#26TYPE A/#26TYPE C/#32TYPE A/#32TYPE C)
- 2 POSITION FACE LIVE TOOL HOLDER FOR MAIN AND SUB SPINDLE
- 3 POSITION ANGLE DRILLING TOOL HOLDER (MANUAL ADJUSTING) (#26TYPE A/#26TYPE C/#32TYPE A/#32TYPE C)
- WHIRLING THREADING UNIT (MAIN SPINDLE)
- POLYGON MILLING UNIT (MAIN SPINDLE)
- POWER DRIVEN SAW UNIT (MAIN SPINDLE)
- GEAR HOBBING UNIT (MAIN SPINDLE)
- STATIONARY TOOL HOLDER (SUB SPINDLE)
- ROTARY TOOL HOLDER (SUB SPINDLE)
- POWER DRIVEN SAW UNIT (SUB SPINDLE)
- 1 POSITION CROSS LIVE TOOL (SUN SPINDLE) (#26TYPE C/#26 TYPE CB/#32TYPE C/#32TYPE CB)
