CNC Swiss Type Lathe

SS-51RB/51RBY

Sliding-head (Swiss-type) CNC Lathes

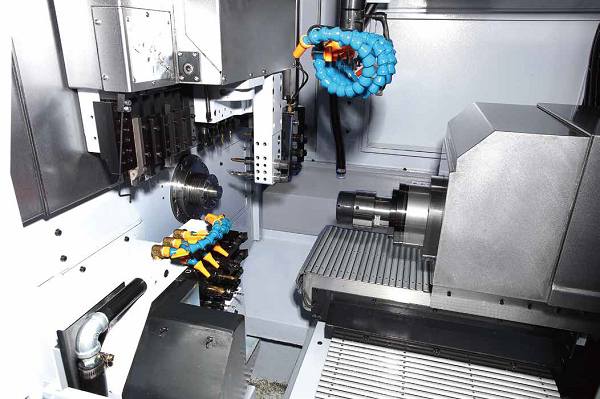

SELICA SS-51RB / SS-51RBY Series is designed for high-precision machining of bar stock up to Ø51 mm. Featuring main and sub-spindles, synchronized machining, and flexible live tooling configurations, it efficiently performs turning, milling, drilling, tapping, and back machining in a single setup. The SS-51RBY further expands machining capability with an additional Y-axis on the sub-spindle, providing greater flexibility for complex multi-axis operations. Ideal for larger and more demanding precision components, the series delivers excellent rigidity, productivity, and machining accuracy.

Model	Unit	SS-51RB	SS-51RBY
Max. turning diameter of main spindle	mm	51	51
Max. turning dia. of sub-spindle	mm	51	51
Max. turning length (rotary guide bush)	mm	300	300
Max. turning length (non guide bush)	mm	130	130
Max. drilling / tapping capacity of main spindle	mm	Ø16 / M12	Ø16 / M12
Max. drilling / tapping capacity of sub-spindle	mm	Ø26 / M16	Ø26 / M16
Max. cross drilling / tapping capacity	mm	Ø12 / M10	Ø12 / M10
No. of external turning tools	pcs	6 (口16mm) / 5 (口20mm)	6 (口16mm) / 5 (口20mm)
No. of internal turning tools	pcs	5 / Ø25mm	5 / Ø25mm
No. of cross drillings of main spindle	pcs	6 (ER-20)	6 (ER-20)
No. of face tool holder of sub-spindle	pcs	4	8
No. of axis controls	pcs	7	8
Main / sub-spindle bore	mm	Ø52	Ø52
Max. speed of main / sub-spindle	rpm	4500	4500
X1/Z1/Y1/X2/Z2/Y2-axis rapid traverse	m/min	24	24
Max. speed of main spindle cross drilling	rpm	4000	4000
Main spindle cross tooling drive motor	kw	2.5	2.5
Sub-spindle face tooling drive motor	kw	2.5	2.5
Max. speed of sub-spindle face drill	rpm	4000	4000
Main spindle motor	kw	11	15
Sub-spindle motor	kw	7.5	11
X1/Z1-axis motor	kw	2.5	2.5
Y1/X2/Z2 motor	kw	2.5	2.5
Y2-axis motor	kw	-	0.75
Coolant pump motor	kw	0.54	0.54
Power requirement	kva	30	30
Lubrication capacity	L	2	2
Coolant tank capacity	L	250(100%)	250(100%)
Machine dimensions (LxWxH)	mm	3173x1695x2146	3173x1695x2146
Weight	kg	5450	5480

STANDARD ACCESSORIES

External tool holder (5 tools)
Internal tool holder (5 tools)
Cross drilling tool holder (6 tools)
Parts catcher and conveyor
Tools and tool box
Lighting device
Fixed guide bushing holder
Main spindle servo motor
Main spindle C axis
Coolant device
Cutting coolant inspection (electronic type)
Cut-off inspection
Central lubrication unit
Sub-spindle C axis
Sub-spindle
Face drilling/milling tool holder (4 tools) for sub-spindle (SS-51RB)
Face drilling/milling tool holder (8 tools) for sub-spindle (SS-51RBY)
Y2 axis
Fixed tool holder (sub-spindle) 2pcs(RB)/3pcs(RBY)
Rotary tool holder (sub-spindle) 2pcs(RB)/3pcs(RBY
3 position OD tool holder □10 (sub-spindle)
Chuck gripper
Machining room with safety lock
Guide bush
Spindle collet
Operation manual
NC operation manual
NC maintenance manual
Main and sub-spindle oil cooling system

OPTIONAL ACCESSORIES

ER16 M2 double side collet shank
Simultaneously rotary guide bushing holder
Long parts catcher (Sub-spindle)
Chip conveyor & cart
ER16 collet set
ER20 collet set
Cutting oil chiller
Stationary drilling tool holder (Sub-spindle)
Power drilling tool holder (Sub-spindle)
Oil mist collector
Power saw unit (Spindle cross drilling tool)
Power saw unit (Sub-spindle face drilling tool)
3-position eccentric tool holder (Main & sub-spindle)
3-position angle drilling tool holder (Manual)
1-position O.D tool holder (Sub-spindle)
Ø16 Shortened type I.D tool holder (Sub-spindle)
Ø16 I.D tool holder (Sub-spindle)
Sub-spindle extended I.D tool holder Ø16 1-2
Extended tool holder Ø16 (With one Ø16 1-2 I.D tool holder)
High-pressure coolant system 15/50/100 bars (With sub-coolant tank)
Hydraulic bar feeder
