CNC Lathe
CNC Lathe
SZ-2000T2/2000T2Y/2000T3Y2
Dual Spindle Turning Centers

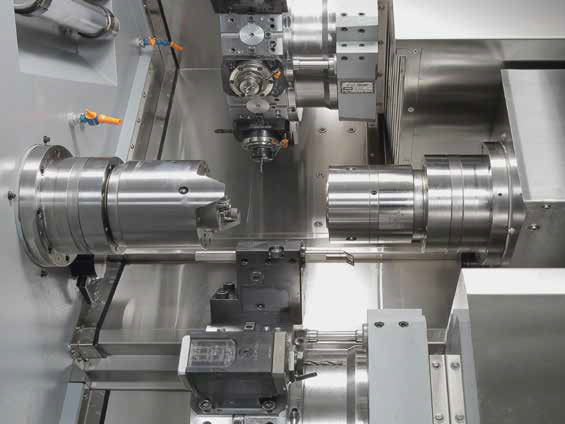

The SELICA SZ-2000 Series is a high-performance multi-tasking turning center engineered to maximize productivity through simultaneous machining. Featuring twin spindles, twin turrets, and up to three turrets on the SZ-2000T3Y2, it enables multi-channel synchronized operations to dramatically reduce cycle times. Equipped with high-speed live tooling and Y-axis capability, the SZ-2000 Series performs turning, milling, drilling, tapping, and off-center machining in a single setup. Designed for complex workpieces and high-volume production, it delivers exceptional flexibility, precision, and machining efficiency.
| MODEL | UNIT | SZ-2000T2 | SZ-2000T2Y | SZ-2000T3Y2 |
|---|---|---|---|---|
| Swing over bed | mm | 660 | 660 | 325 |
| Swing over saddle | mm | 620 | 620 | 325 |
| Max. Spindle turning diameter | mm | 320 | 320 | 320 |
| Max. turning length | mm | 810 | 810 | 295 |
| Spindle nose taper | ASA | A2-5 (A2-8/A2-11) | A2-5 (A2-8/A2-11) | A2-5 (A2-6) |
| Spindle chuck diameter | inch | 6 (10/15) | 6 (10/15) | 6 (8) |
| Spindle speed | rpm | 5000 (3500/2000) | 5000 (3500/2000) | 5000/4500 |
| Spindle motor power Cont./30min | kW | 11/15(15/18.5) | 11/15(15/18.5) | 11/15 |
| Spindle bar capacity | mm | 52 (78/105) | 52 (78/105) | 52 (65) |
| Sub spindle nose taper | ASA | A2-5 (A2-6) | A2-5 (A2-6) | A2-5 (A2-6) |
| Sub spindle chuck diameter | inch | 6 (8) | 6 (8) | 6 (8) |
| Sub spindle speed | rpm | 5000/4500 | 5000/4500 | 5000/4500 |
| Sub spindle motor power Cont./30min | kW | 11/15 | 11/15 | 11/15 |
| Sub spindle bar capacity | mm | 52 (65) | 52 (65) | 52 (65) |
| Z-axis travel | mm | Z1/Z2: 840 | Z1/Z2: 840 | Z1/Z3: 350 Z2: 840 |
| Y-axis travel | mm | - | Y1: -40/+60 | Y1/Y3: +65/-45 |
| X-axis travel | mm | X1/X2: 210 | X1/X2: 210 | X1/X2/X3: 210 |
| B-axis travel | mm | 920 | 920 | 920 |
| X/Z-axis rapid traverse rate | m/min | 30/40 | 30/40 | 24/40 |
| Y-axis rapid traverse rate | m/min | - | 30 | 20 |
| Tooling system | BMT-40 | BMT-40 | BMT-40 | |
| Turret driven type | Servo mechanical | Servo mechanical | Servo mechanical | |
| Number of tools | station | 16x2=32 | 16x2=32 | 16x3=48 |
| Square tool shank size | mm | 20 | 20 | 20 |
| Round tool shank size | mm | 32 | 32 | 32 |
| Rotary tool spindle power | kW | 3.7/5.5 | 3.7/5.5 | 4.5 |
| Rotary tool spindle speed | rpm | 6000 | 6000 | 6000 |
| Machine dimension LxMxH | m | 4.7 x 2.4 x 2.3 | 4.7 x 2.4 x 2.3 | 4.7 x 2.4 x 2.3 |
| Net weight | kg | 10500 | 11000 | 11500 |
STANDARD ACCESSORIES
- Hollow 3-jaw hydraulic cylinder and chuck
- RS-232 interface
- Heat exchanger for electric cabinet
- Hydraulic power supply unit
- Coolant system (4-bar)
- Central lubrication unit
- Three-colour warming light
- Chip conveyor and chip cart
- Standard soft jaw and hard jaw
- Tool kit
- Operation manual
OPTIONAL ACCESSORIES
- Radial rotary tool holder
- Axial rotary tool holder
- Auto door
- Oil-coolant skimmer
- Oil mist collector
- Transformer
- CE certification
