Vertical Machine Center

Vertical Machine Center
SJM-650E
SJM-650E

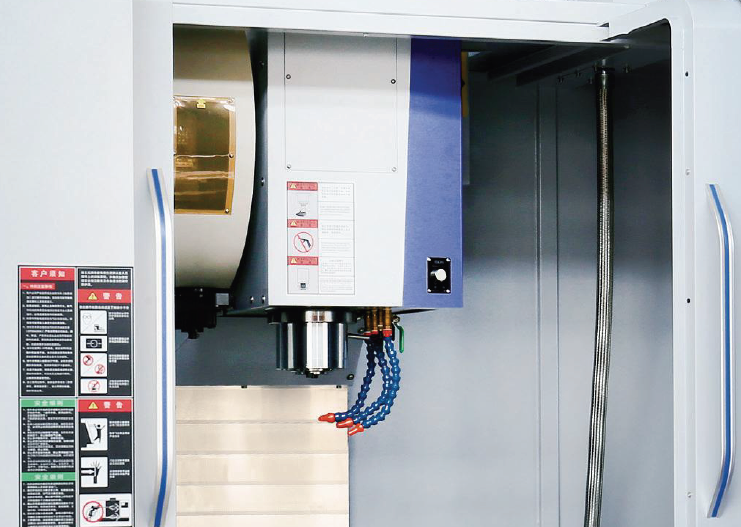

COMPACT LINEAR GUIDEWAY DESIGN FOR STABLE CUTTING PERFORMANCE. EQUIPPED WITH BT40 SPINDLE AND 16/20 TOOLS ATC.
ModelSJM-650E
Table size800x420 mm
T-slot4x14x84 mm
X/Y/Z axis travel600/400/450 mm
Spindle speedBelt drive:8000 / Direct drive: 12000(Opt.) rpm
Spindle TaperISO 7:24 NO.40
Slideway typeLinear guideway
Rapid traverse (X/Y/Z)48/48/48 m/min
Tool magazine capacity16/20 pcs
Magazine typeDisk type
Spindle Nose To Table Surface150-600 mm
Positioning±0.005/300 mm
Repeatability±0.003/300 mm
Min.setting Unit0.001 mm
Max Load table450 kg
ControllerSyntec/Mitshbishi/Fanuc
Spindle motor7.5/11 kw
Tool selectionArm type
Air requirement≥6kg/cm2
Power consumption15 kva
Machine Weight3600 kg
Machine Dimensions (LxWxH)2100x2000x2400 mm
OPTIONAL ACCESSORIES
  • Spindle splashing
  • 4th/5th-axis rotary table
  • Contact-type tool setter
  • Contact-type probe
  • Oil mist collector
  • Oil skimmer
