CNC Lathe
CNC Lathe
SD-20E/20EM/26E/26EM

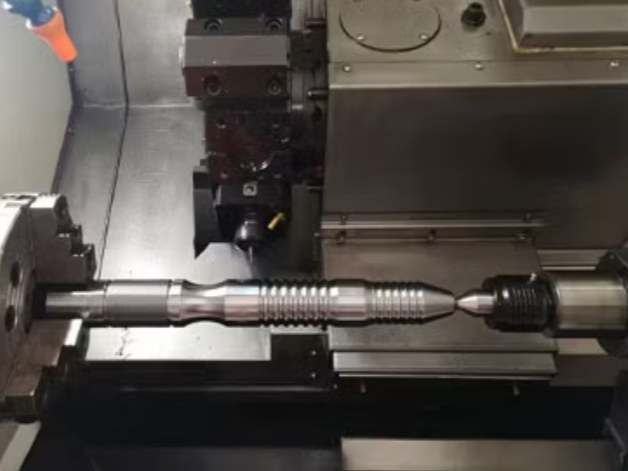

THE SD-20/20M CNC LATHE SUPPORTS TURNING, MILLING, TAPPING, AND SIDE MACHINING OPERATIONS.
| MODEL | SD-20E | SD-20EM | SD-26E | SD-26EM |
|---|---|---|---|---|
| Max. spindle dia | Ø630 mm | Ø630 mm | Ø630 mm | Ø630 mm |
| Max. turning dia | Ø320 mm | Ø320 mm | Ø320 mm | Ø320 mm |
| Spindle bore dia | Ø51 mm | Ø51 mm | Ø65 mm | Ø65 mm |
| Chuck size | 8 inch | 8 inch | 8/10 inch | 8/10 inch |
| Max. turning length | 500-550 mm | 400 mm | 500-550 mm | 500-550 mm |
| X/Z axis travel | 200/600 mm | 200/450 mm | 200/600 mm | 200/600 mm |
| X/Z axis feed | 24/24 m/min | 24/24 m/min | 24/24 m/min | 24/24 m/min |
| Transmission | Belt drive | Belt drive | Belt drive | Belt drive |
| Spindle Motor | 18.5/22 kw | 11/15 kw | 18.5/22 kw | 18.5/22 kw |
| Spindle speed | 45-4000 rpm | 45-4000 rpm | 45-3500 rpm | 45-3500 rpm |
| Spindle nose | A2-5 | A2-5 | A2-6 | A2-6 |

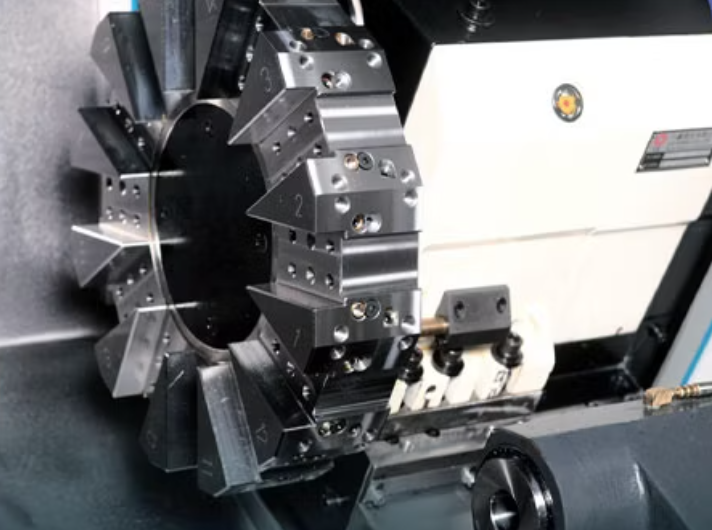

| Number of turret stations | 12T | 12T | 12T | 12T |
| Turret positioning time | 0.3 Sec | 0.3 Sec | 0.3 Sec | 0.3 Sec |
| Tool disc drive motor | - | 1.0 kw | - | 1.0 kw |
| Tool drive motor | - | 2.2/3.7 kw | - | 2.2/3.7 kw |
| Slideway type | Linear guideway | Linear guideway | Linear guideway | Linear guideway |
| Turning tool dia | □25 mm | □25 mm | □25 mm | □25 mm |
| Boring tool dia | Ø40 mm | Ø40 mm | Ø40 mm | Ø40 mm |
| Coolant motor | 1/2 hp | 1/2 hp | 1/2 hp | 1/2 hp |
| Coolant tank capacity | 100(85%) L | 100(85%) L | 100(85%) L | 100(85%) L |
| Hydraulic motor | 2 hp | 2 hp | 2 hp | 2 hp |
| Hydraulic tank capacity | 40(85%) L | 40(85%) L | 40(85%) L | 40(85%) L |
| Power requirement | 25 kva | 25 kva | 25 kva | 25 kva |
| Machine dimensions (LxWxH) | 2650*1780*2100 mm | 2650*1780*2100 mm | 2650*1780*2100 mm | 2650*1780*2100 mm |
| Machine weight | 3450/3500 kg | 3650/3700 kg | 3450/3500 kg | 3650/3700 kg |
STANDARD ACCESSORIES
- Lighting
- Coolant system
- Auto lubrication system
- Tools and tool box
- Foot switch
- Operation manual
- NC operation manual
- NC maintenance manual
- Hydraulic chuck
- Barfeeder interface
- Inner tool holder
- Outer tool holder for BMT turret
- Tailstock
- Chip conveyor
- Heat exchanger
OPTIONAL ACCESSORIES
- Maximum bar through-hole Φ65
- Parts conveyor
- Parts catcher
- Six-axis robotic arm
- Multi-machine interconnection
- Collet holder
- Chuck blowing
- Multi-bar feeder
- Voltage stabilizer
- Transformer
