CNC Lathe

CNC Lathe
SD-10E
SD-10E
THE SD-10E FEATURES A SLANT-BED, BOX WAY DESIGN FOR HIGH-STRENGTH TURNING.

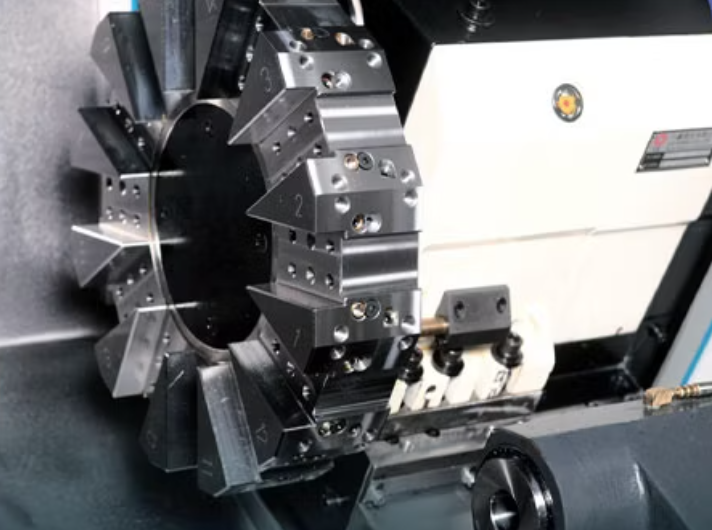

Hydraulic Servo Turret
Available with 8, 10, or 12 tool stations, offering high precision, excellent rigidity, and reliable performance for heavy-duty turning.

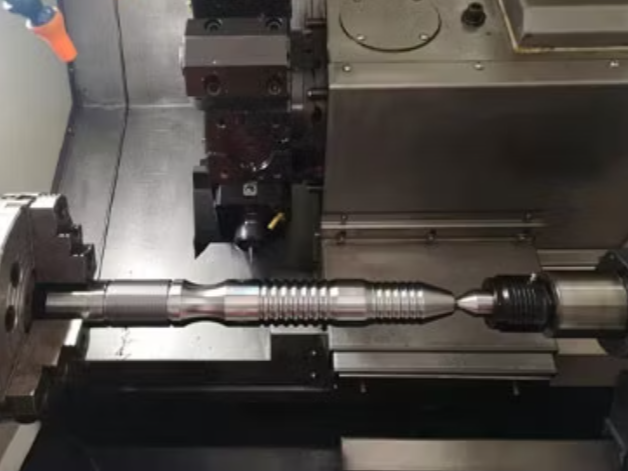

Hydraulic Tailstock
Programmable hydraulic tailstock with servo control for precise positioning and stable support.
ModelSD-10E
Max. spindle diaØ320 mm
Max. turning diaØ180 mm
Spindle bore diaØ42 mm
Chuck size6 inch
Max. turning length180 mm
X/Z axis travel110/200 mm
X/Z axis feed16/16 m/min
TransmissionBelt drive
Spindle Motor5.5/7.5 kw
Spindle speed45-4000 rpm
Spindle noseA2-5
Number of turret stations10T
Turret positioning time0.3 sec
Slideway typeSquare guide way
Turning tool dia□20mm
Boring tool diaØ25mm
Coolant motor1/2 hp
Coolant tank capacity150(85%) L
Hydraulic motor2 hp
Hydraulic tank capacity30(85%) L
Power requirement15 kva
Machine dimensions (LxWxH)1800*1550*1780 mm
Machine weight2400 kg
STANDARD ACCESSORIES
  • Lighting
  • Coolant system
  • Auto lubrication system
  • Tools and tool box
  • Foot switch
  • Operation manual
  • NC operation manual
  • NC maintenance manual
  • Hydraulic chuck
  • Barfeeder interface
  • Inner tool holder
  • Outer tool holder for BMT turret
  • Chip conveyor
  • Heat exchanger
OPTIONAL ACCESSORIES
  • Tailstock
  • Parts conveyor
  • Parts catcher
  • Six-axis robotic arm
  • Multi-machine interconnection
  • Collet holder
  • Chuck blowing
  • Multi-bar feeder
  • Voltage stabilizer
  • Transformer
