Vertical Machine Center
Vertical Machine Center

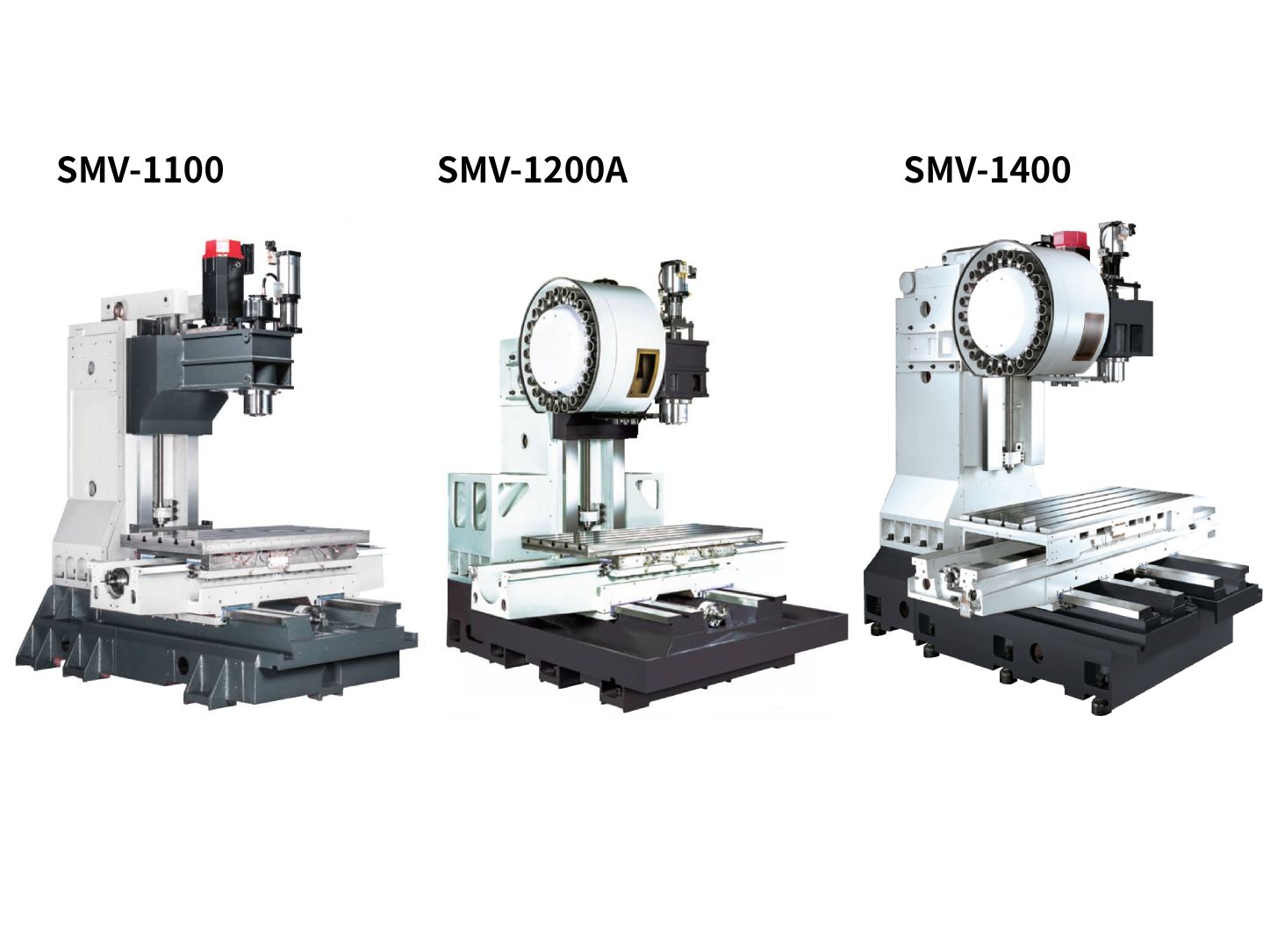

SMV-1100/1200A/1400
Box Way Vertical Machining Center
DESIGNED FOR MOLD & DIE OR PRECISE PARTS MACHINING
• Fully supported 4-way bed, rigid column provides best support for heavy cutting.
• Full enclosed splash guard with wider door opening.
• 6000 rpm gear driven (Optional) is available for efficient roughing and precise finishing.
• Pre-tensioned C3 ball screws with directly coupled feeding design.
• Spindle cooling system is equipped to keep continuously stable machining.
• All structural mating surfaces are superior scraped to ensure geometric accuracy and loading balance.
• Absolute encoder servo motors directly coupled with ball screws assure best drive performance and accuracy.
• Full enclosed splash guard with wider door opening.
• 6000 rpm gear driven (Optional) is available for efficient roughing and precise finishing.
• Pre-tensioned C3 ball screws with directly coupled feeding design.
• Spindle cooling system is equipped to keep continuously stable machining.
• All structural mating surfaces are superior scraped to ensure geometric accuracy and loading balance.
• Absolute encoder servo motors directly coupled with ball screws assure best drive performance and accuracy.
| MODEL | UNIT | SMV-1100 | SMV-1200A | SMV-1400 |
|---|---|---|---|---|
| 3-Axes travel | - | Box Way | Box Way | Box Way |
| X axis Travel | mm | 1100 | 1200 | 1400 |
| Y axis Travel | mm | 600 | 650 | 720 |
| Z axis Travel | mm | 600(120-720) | 600(120-720) | 610(150-760) |
| Z axie travel (BT40)-Opt. | mm | 800(120-920) | 700(150-850) | |
| Z axie travel (BT50 belt type)-Opt. | mm | 720(150-870) | 680(170-850) | |
| Z axie travel (BT50 gear head)-Opt. | mm | 600(120-720) | 680(150-850) | |
| TABLE | ||||
| Table area | mm | 1250x650 | 1350x650 | 1550x700 |
| Max. load table | kgs | 880 | 1000 | 2000 |
| T-slot | mm | 5x18x125 | 5x18x125 | 5x18x130 |
| SPINDLE | ||||
| Spindle taper | type | BT-40 | BT-40 | BT-40 |
| Spindle speed | rpm | 10000 | 10000 | 10000 |
| Spindle drive | type | Belt | Belt | Belt |
| Spindle motor | kw | 7.5/11 | 7.5/11 | 11/15 |
| Spindle cooling | type | oil cooler | oil cooler | oil cooler |
| FEED RATE | ||||
| Rapid traverse (X,Y,Z) | m/min | 18 / 18 / 15 | 18 / 18 / 15 | 18 / 18 / 15 |
| Cutting feed rate | mm/min | 1-10000 | 1-10000 | 1-10000 |
| X,Y,Z axis servo motor (FANUC) | kw | 2.5 / 2.5 / 2.5 | 2.5 / 2.5 / 2.5 | 3 / 3 / 3 |
| X,Y,Z axis servo motor (MITSUBISHI) | kw | 3.5 / 3.5 / 3.5 | 3.5 / 3.5 / 3.5 | 3.5 / 3.5 / 3.5 |
| ATC | ||||
| Magazine type | type | Arm | Arm | Arm |
| Tool magazine capacity | pcs | 24 | 24 | 24 |
| Max. tool diameter | mm | 75 / 150 | 75 / 150 | 75 / 150 |
| Max. tool length | mm | 300 | 300 | 300 |
| Max. tool weight | kgs | 7 | 7 | 7 |
| Tool selection | type | Random | Random | Random |
| OTHER | ||||
| Power consumption | KVA | 20 | 20 | 20 |
| Floor space (L x W x H) | mm | 3470 x 2580 x 2880 | 3600 x 2580 x 2950 | 4120 x 3900 x 2845 |
| Machine weight | kgs | 7500 | 8200 | 11000 |
Standard Accessories
- Full splash guard
- Spindle motor 7.5/11kw
- Rigid tapping
- Cooling system
- Auto lubrication system
- Spindle oil cooler unit
- Heat exchanger
- Work lamp
- Three-color call light
- Tool box
- Coolant gun
- Screw type chip conveyor
Optional Accessories
- Transformer
- CE Mark
- Arm type ATC 30 tools,BT40 or BT50
- Spindle motor 11/15kw
- Belt type spindle speed 6000/8000 rpm,BT50
- Rigid tapping
- Cooling system
- Auto lubrication system
- Spindle oil cooler unit
- Heat exchanger
