CNC Swiss Type Lathe
CNC Swiss Type Lathe
SS-20RB/RBY
high-precision Swiss-type CNC lathes designed for small-to-medium diameter parts up to Ø20 mm.
Main Spindle & Tooling System
Deep Hole Drilling Device
- The sub-spindle side is available to be equipped with a deep hole drilling device with coolant through the drill.

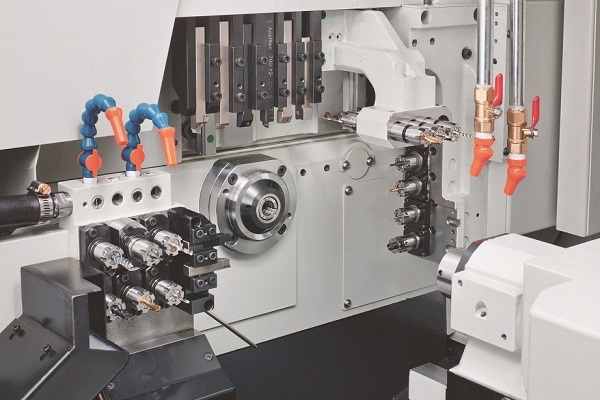

Main Spindle and Tooling System
- OD tool holder: 6 tools
- ID tool holder: 4 tools
- Cross live tool holder: 5 tools
- The sub-spindle side is available to be equipped with a deep hole drilling device with coolant through the drill.
Main Spindle and Tooling System
- OD tool holder: 6 tools
- ID tool holder: 4 tools
- Cross live tool holder: 5 tools

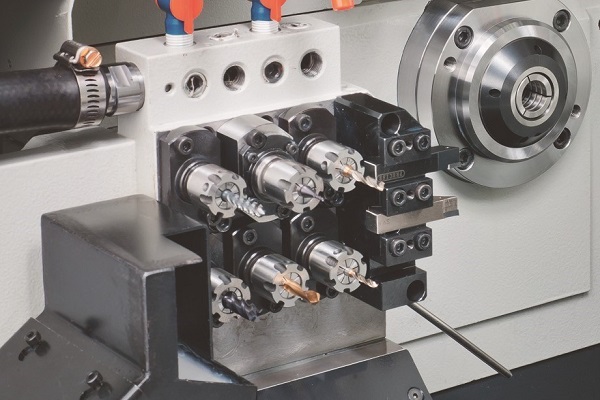

Sub-Spindle Tooling System
It can perform drilling, tapping, and milling operations on the reverse side of the workpiece without removal from the machine. This setup minimizes part handling, improves dimensional accuracy, and shortens cycle times, making it ideal for complex, multi-operation components.

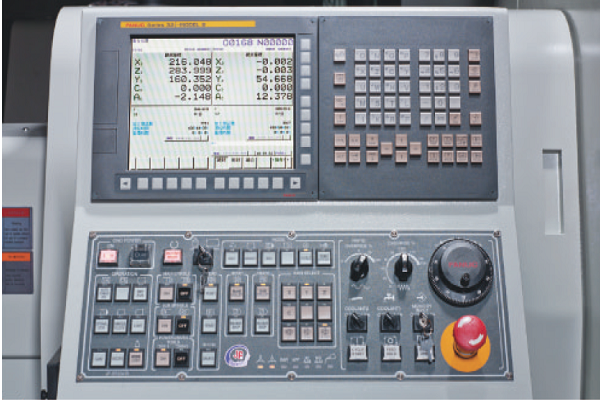

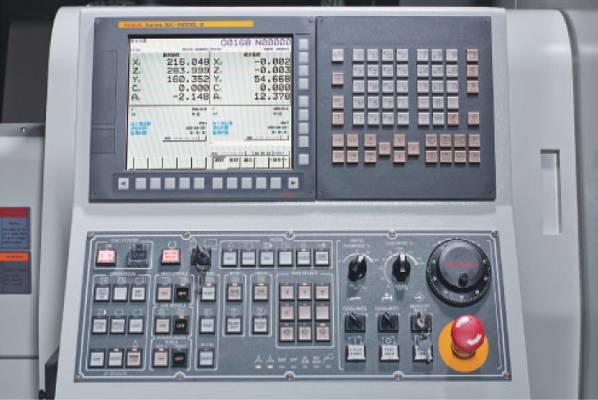

Fanuc 32iB CNC Control
Offering powerful processing capabilities, high-speed response, and advanced machining functions. The control panel can be moved and swivelled, enhancing operator convenience and ergonomics during setup and operation.

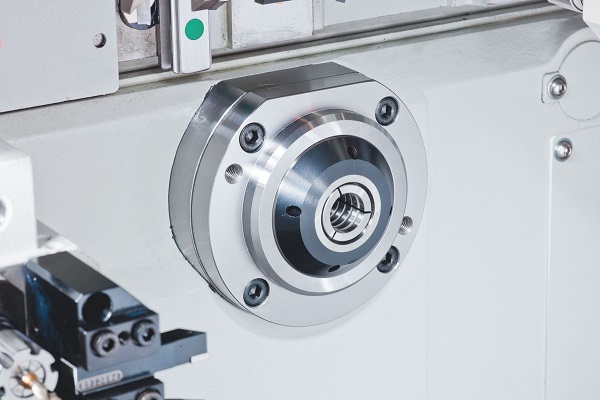

Non-guide Bushing Holder
For use on the conserving tool lathe to reduce the end bar for saving material and cost.

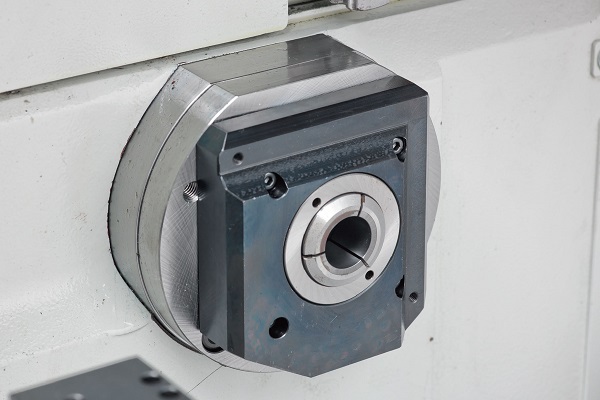

Rotary Guide Bushing Holder
For use on the sliding head lathe to increase stability and surface finish in long part machining
| Model | Unit | SS-20RB | SS-20RBY |
|---|---|---|---|
| Max. turning dia. of main spindle | mm | 20 | 20 |
| Max. turning dia. of sub-spindle | mm | 20 | 20 |
| Max. turning length (rotary guide bush) | mm | 190/250 | 190/250 |
| Max. turning length (non guide bush) | mm | 50 | 50 |
| Max. turning length (fixed guide bush) | mm | 220/280 | 220/280 |
| Max. drilling / tapping capacity of main spindle | mm | Ø10 / M8 | Ø10 / M8 |
| Max. drilling / tapping capacity of sub-spindle | mm | Ø8 / M8 | Ø8 / M8 |
| Max. cross drilling / tapping capacity | mm | Ø8 / M6 | Ø8 / M6 |
| OD tool holder | pcs | 6 / □12mm | 6 / □12mm |
| ID tool holder | pcs | 4 / Ø22mm | 4 / Ø22mm |
| Main spindle cross live tool holder | pcs | 5 / ER-16 | 5 / ER-16 |
| Sub-spindle face live tool holder | pcs | 4 | 8 |
| No. of axis controls | pcs | 7 | 8 |
| Main / sub-spindle bore | mm | Ø26.6 | Ø26.6 |
| Main / sub-spindle max. speed | rpm | 10000 / 8000 | 10000 / 8000 |
| X1/Z1/Y1/X2/Z2/Y2 rapid traverse | m/min | 24 | 24 |
| Main spindle cross drilling max. speed | rpm | 8000 | 8000 |
| Main spindle cross driven motor | kw | 1.2 | 1.2 |
| Sub-spindle face driven motor | kw | 0.5 | 0.75 |
| Sub-spindle face drilling max. speed | kw | 8000 | 8000 |
| Main spindle motor | kw | 2.2 / 3.7 | 2.2 / 3.7 |
| Sub-spindle motor | kw | 2.2 / 3.7 | 2.2 / 3.7 |
| X1/Z1/Y1 motor | kw | 0.75 | 0.75 |
| X2/Z2 motor | kw | 0.5 | 0.5 |
| Y2 motor | kw | - | 0.5 |
| Coolant pump motor | kw | 2.3 | 2.3 |
| Power requirement | kva | 20 | 20 |
| Lubrication capacity | L | 2 | 2 |
| Coolant tank capacity | L | 220 (100%) | 220 (100%) |
| Machine dimensions (LxWxH) | mm | 2846 x 1284 x 2024 | 2846 x 1284 x 2024 |
| Weight | kg | 2670 | 2700 |
